Cable Avoidance Tool CAT4+

Name: Cable Avoidance Tool CAT4+
Brand: LAVITECH INNOVATION (OPC) PRIVATE LIMITED
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Cable Avoidance Tool CAT4+ Specification

Interface Type
Control panel with membrane keypad

Model
CAT4+

Features
High-visibility LED display, audio indication, selectable modes (power, radio, generator, all scan)

Frequency
33 kHz (standard locating frequency), multiple frequencies supported Kilohertz ( KHZ )

Size
Standard handheld

Operating Temperature
-20C to +50C

Battery Backup
Approximately 40 hours (alkaline batteries) Hours

Power Supply
6 x AA batteries (alkaline or NiMH)

Mounting Type
Handheld/portable

Range
Up to 100 meters line tracing (with transmitter)

Product Type
Cable Avoidance Tool

Application
Detection of buried all metallic buried utility

Dimension (L*W*H)
760 x 275 x 75 mm Millimeter (mm)

Material
ABS

Weight
2.7 kg (including batteries) Kilograms (kg)

Capacity
2.7 Kg

Coverage Area
Up to 3 meters depth (depending on conditions) Square Meter (m2)

Audio Output
Loudspeaker with adjustable volume

Vibration
Yes, for cable proximity alert

Ingress Protection Rating
IP54

Compliance
BS EN61010-1, EN55011, EN61326

Storage Temperature
-40°C to +70°C

Additional Product Specifications

Upgradeability
Firmware upgradable via data port

Sensitivity
Adjustable sensitivity control

Self-Test
Built-in automatic daily self-test

Data Logging
Data storage capability (models with logging feature only)

Alarm
Overload warning and shallow cable alert

Display Type
LCD with bar graph and numeric readout

Case Material
High impact resistant plastic

Color
Yellow and black

Cable Avoidance Tool CAT4+ Trade Information

Minimum Order Quantity
1 Number

FOB Port
Delhi

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Per Month

Delivery Time
10 Days

Sample Available
No

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
Supplied with bag for easy carrying and during the supply it packed in Corotated box.

Main Domestic Market
All India

About Cable Avoidance Tool CAT4+

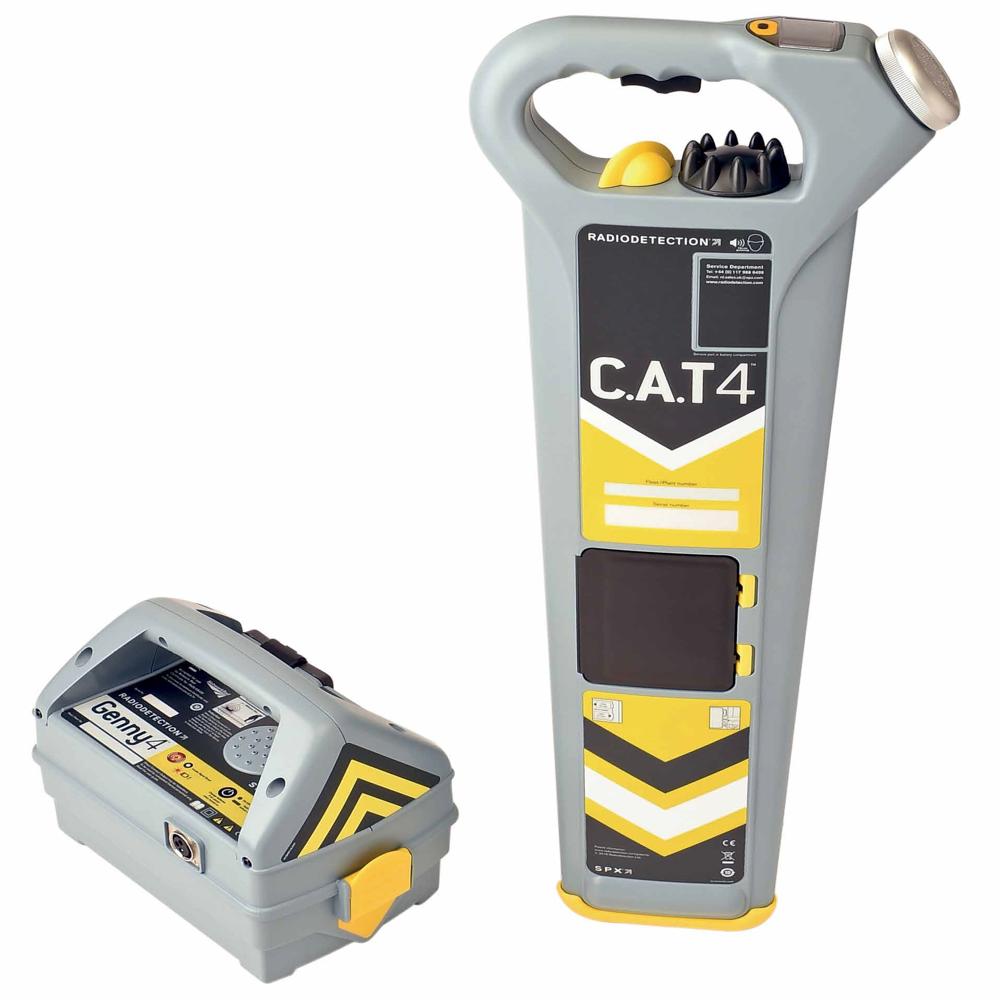

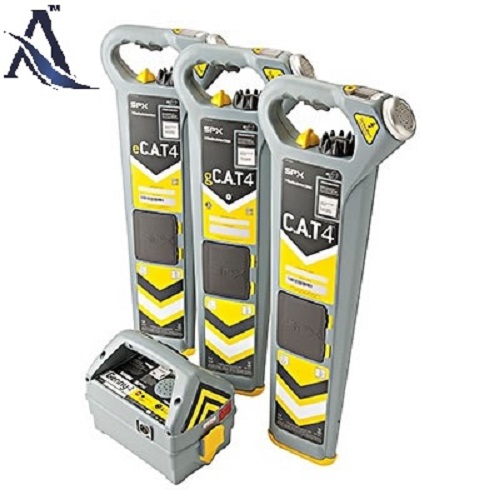

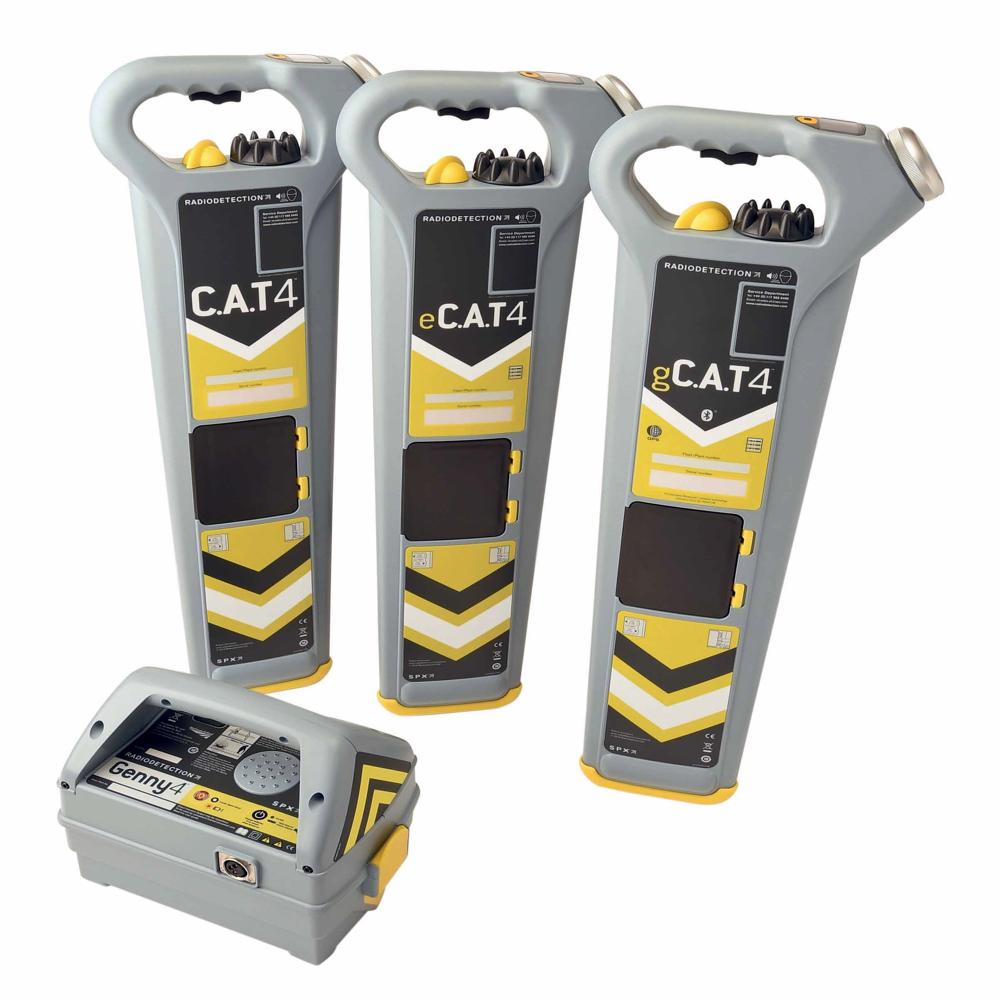

The Radio detection C.A.T4 and Genny4 range offers advanced cable avoidance tools designed to enhance safety and efficiency during excavation projects.

Key Features of the C.A.T4 and Genny4 Range:

Dual-Frequency Detection: Locates small diameter cables like telecoms and street lighting with improved accuracy.
Dynamic Overload Protection: Ensures accurate detection even in electrically noisy environments.
Avoidance Mode: Simultaneously searches for Power, Radio, and Genny signals for comprehensive utility detection.
StrikeAlert Warning: Alerts users of shallow buried utilities to reduce the risk of accidental strikes.
SWING Warning: Promotes correct usage techniques, enhancing safety.
Data Logging & GPS Integration: Enables detailed reporting and performance monitoring with built-in GPS/GNSS.
Bluetooth Connectivity: Allows real-time data transfer to mobile devices for monitoring and analysis.
Service Due Indicator & CalSafe: Prevents use of tools beyond calibration due date for ongoing accuracy.
eCert Online Service: Extends calibration validity without downtime, ensuring uninterrupted service.

Advanced Features for Reliable Detection

The CAT4+ offers a high-contrast LED display, selectable detection modes, and adjustable sensitivity to help users accurately locate buried metallic utilities. Its built-in overload warning, shallow cable alert, and vibration feedback enhance operational awareness, making detection safer and more precise even in challenging conditions.

Durability and Ease of Use in the Field

Built from high-impact ABS plastic and rated IP54 for dust and water resistance, the CAT4+ withstands tough site conditions. Handheld and portable, it operates in temperatures from -20C to +50C and stores safely from -40C to +70C, ensuring reliability. The control panel with membrane keypad is user-friendly for quick operation.

Data Logging and Upgradeable Performance

Certain CAT4+ models feature data logging for storing and reviewing survey data, aiding in compliance and traceability. The tools firmware is upgradable via its data port, allowing users to benefit from the latest software improvements and long-term value. Compliance with BS EN61010-1, EN55011, and EN61326 assures adherence to industry standards.

FAQs of Cable Avoidance Tool:

Q: How does the CAT4+ Cable Avoidance Tool detect buried utilities?

A: The CAT4+ uses electromagnetic technology with selectable detection modes (power, radio, generator, all scan). It identifies all metallic buried utilities by measuring signals at standard frequencies, including 33 kHz and others. Sensitivity can be adjusted for accuracy, and a bar graph and numeric LCD display provide real-time feedback.

Q: What are the main benefits of using the CAT4+ for cable detection?

A: The CAT4+ enhances safety by giving audio, visual, and vibration alerts for shallow cables or overloads, preventing accidental strikes. Its robust design, high ingress protection (IP54), and compliance with international standards mean it performs reliably in diverse site environments. Data logging and firmware upgradeability ensure long-term utility and record-keeping.

Q: When should I use the adjustable sensitivity function?

A: Adjust the sensitivity when you need to locate cables at varying depths or in environments with background noise. Lower sensitivity helps filter out interference, whereas higher sensitivity is suitable for detecting deeper or weaker signals, enabling precise location based on site conditions.

Q: Where can the CAT4+ be effectively used?

A: This tool is ideal for construction sites, utilities maintenance, and anywhere you need to detect metallic pipes and cables underground. Its IP54 rating and wide operating temperature range make it suitable for both indoor and outdoor use in challenging conditions.

Q: What process does the CAT4+ follow for daily self-tests?

A: The CAT4+ is equipped with a built-in automatic daily self-test that runs when the device is powered on. This ensures all electronic circuits and sensors are working correctly, providing you with confidence that the tool is operational before each use.

Q: How is data logged and retrieved on models with logging feature?

A: On logging-enabled models, survey and detection data are automatically stored during operation. Data can be retrieved via the devices data port and downloaded to compatible data management software for analysis, compliance, and record-keeping purposes.

Q: What type of batteries does the CAT4+ require and how long do they last?

A: The device operates on six AA batteries (either alkaline or NiMH rechargeable). With alkaline batteries, you can expect a battery backup of approximately 40 hours, making it well-suited for extended fieldwork without frequent replacements.
